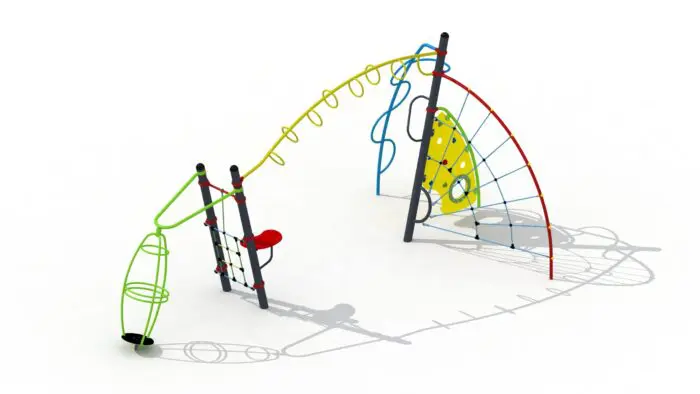

Challenging modern playground equipment for children aged 6 to 12. It is built out of 2 vertical poles, connected to eachother by means of a bended hanging ladder. 3 large climbing elements are attached onto the highest pole by means of aluminium clamps. Via a bended snake climber, one can climb to the top of the pathfinder. A bended net, placed between the central climbing pole and a bended tube, allows children to climb at the same time, at different heights. The net is built out of 16 mm polypropylene rope with steel-wire reinforcement. The Pathfinder can also be climbed via a bended climbing wall with a HDPE polyethylene panel with several crawling and climbing possibilities. This climbing wall has plastic climbing grips at both sides. A vertical, rectangular climbing net allows to climb the lowest pole. At this side of the Pathfinder, there is also a rotating shuttle. All metal parts are protected against rust and polyester coated. All nuts and bolts are completely protected. This playground equipment is fixed directly into the
ground by using concrete.
| Stærð | 7,3 x 3,9 x 3,3 m |
| Fallhæð | 2,95 m |
| Aldur | 6 – 12 |
| Samsetningartími | 2p. – 12u. |
| Öryggissvæði | 64 m² |
| Vottun | EN-1176 |
| Undirstöður | Yes |
| Efni | Metal poles of 127 mm Metal tubes 27,34 and 48 mm Metal parts polyester coated Aluminium and plastic clamps Plastic pole and protection caps Sheet material and climbing grips in HDPE polyethylene Ropes and nets in 16 mm polypropylene rope with steel-wire reinforcement Maintenance-free turning mechanismen |
| Bæklingur | Sjá hér |
